YERALTI ENERJİ KABLOLARI

0.6/ 1 kV PVC İZOLELİ, BAKIR İLETKENLİ KABLOLAR

YVV (NYY)

YVV 0.6/1 kV TS IEC 60502-1

NYY 0.6/1 kV VDE 0276-603

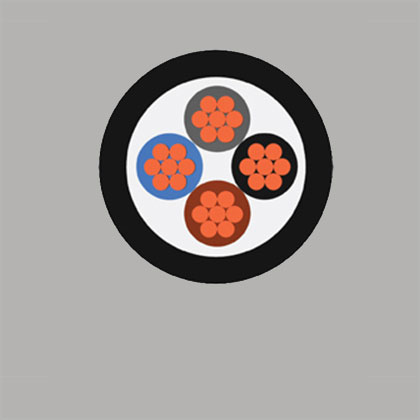

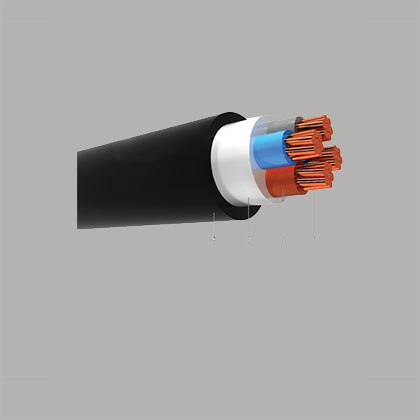

Yapısı

1- Bir veya çok telli bakır iletken

2- PVC izole

3- PVC dolgu

4- PVC dış kılıf

Teknik Bilgiler

İzin verilen işletme sıcaklığı: 70°C

Kısa devre sıcaklığı: 160°C (+≤ 5 sn)

Test gerilimi (AC): 3,5 kV

Serim sıcaklığı min: -5°C

Kullanma Yeri

Mekanik zorlamaların bulunmadığı yerlerde, enerji istasyonlarında, umumi inşaat kabloları olarak dahili tesislerde, kablo kanallarında endüstriyel tesislerde, künk ve borular içinde kullanılır.

TEKNİK ÖZELLİKLER
Normal Kesit	Kablo Dış Çapı	Akım Taşıma Kapasitesi				İletken DC Direnci (20°C)	Net Ağırlık	Sevk Uzunluğu
mm2	mm	Havada	Toprakta •••	Havada •••	Toprakta	Ohm/Km	Kg/Km	Mt
1 x 1.5 re	5.80	21	27	21	27	12.100	51.30	1000
1 x 2.5 re	6.20	27	35	28	35	7.410	63.92	1000
1 x 4 re	7.00	37	46	38	45	4.610	87.22	1000
1 x 6 re	7.50	46	57	48	57	3.080	109.94	1000
1 x 1.5 rm	6.00	21	27	21	27	12.100	54.13	1000
1 x 2.5 rm	6.40	27	35	28	35	7.410	66.94	1000
1 x 4 rm	7.40	37	46	38	45	4.610	94.12	1000
1 x 6 rm	8.00	46	57	48	57	3.080	119.21	1000
1 x 10 rm	8.60	64	76	65	76	1.830	159.86	1000
1 x 16 rm	9.60	84	98	87	97	1.150	223.73	1000
1 x 25 rm	11.10	114	127	117	125	0.727	326.17	1000
1 x 35 rm	12.20	140	152	144	150	0.524	426.37	1000
1 x 50 rm	13.80	172	180	177	178	0.387	567.61	1000
1 x 70 rm	15.60	218	220	225	218	0.268	778.47	1000
1 x 95 rm	18.00	270	264	278	260	0.193	1,060.91	1000
1 x 120 rm	19.40	315	300	325	296	0.153	1,299.63	1000
1 x 150 rm	21.40	362	336	373	331	0.124	1,598.60	1000
1 x 185 rm	23.80	420	379	433	374	0.099	1,988.29	1000
1 x 240 rm	26.70	503	439	518	432	0.075	2,570.65	1000
1 x 300 rm	29.40	580	494	598	486	0.060	3,187.12	500
1 x 400 rm	33.00	674	558	695	549	0.047	4,079.78	500
1 x 500 rm	36.60	781	629	806	618	0.037	5,148.48	500
1 x 630 rm	40.20	901	704	930	692	0.028	6,494.98	500
2 x 1.5 re	11.60	23	27	23	27	12.100	196.07	1000
2 x 2.5 re	12.40	30	36	30	36	7.410	235.09	1000
2 x 4 re	14.00	40	47	40	47	4.610	312.09	1000
2 x 6 re	15.00	51	59	51	59	3.080	378.45	1000
2 x 1.5 rm	12.00	23	27	23	27	12.100	208.50	1000
2 x 2.5 rm	12.80	30	36	30	36	7.410	248.37	1000
2 x 4 rm	14.80	40	47	40	47	4.610	342.49	1000
2 x 6 rm	16.00	51	59	51	59	3.080	419.37	1000
2 x 10 rm	17.20	70	80	70	80	1.830	529.45	1000
2 x 16 rm	19.20	93	104	93	104	1.150	709.89	1000
2 x 25 rm	22.20	123	134	123	134	0.727	1,004.86	1000
2 x 35 rm	24.40	151	162	151	162	0.524	1,279.71	1000
2 x 50 rm	27.80	182	191	182	191	0.387	1,696.66	1000
2 x 70 rm	31.60	230	236	230	236	0.268	2,292.18	1000
2 x 95 rm	36.40	280	281	280	281	0.193	3,093.83	1000
2 x 120 rm	39.40	325	321	325	321	0.153	3,745.91	1000
2 x 150 rm	43.60	371	361	371	361	0.124	4,612.83	1000
2 x 185 rm	48.40	424	406	424	406	0.099	5,714.31	1000
2 x 240 rm	54.60	501	470	501	470	0.075	7,376.12	1000
2 x 300 rm	60.40	572	528	572	528	0.060	9,127.01	500
2 x 400 rm	67.20	634	541	634	541	0.047	11,520.03	500
3 x 1.5 re	12.10	19	23	19	23	12.100	220.73	500
3 x 2.5 re	13.00	26	31	26	31	7.410	270.69	500
3 x 4 re	14.70	34	40	34	40	4.610	363.56	500
3 x 6 re	15.80	44	50	44	50	3.080	449.20	500
3 x 1.5 rm	12.60	19	23	19	23	12.100	236.91	500
3 x 2.5 rm	13.40	26	31	26	31	7.410	284.28	500
3 x 4 rm	15.60	34	40	34	40	4.610	399.00	500
3 x 6 rm	16.90	44	50	44	50	3.080	495.84	1000
3 x 10 rm	18.20	60	68	60	68	1.830	641.12	1000
3 x 16 rm	20.30	79	88	79	88	1.150	871.75	1000
3 x 25 rm	23.60	105	114	105	114	0.727	1,255.50	1000
3 x 35 rm	26.00	129	137	129	137	0.524	1,618.37	1000
3 x 50 rm	29.80	162	168	162	168	0.387	2,164.90	1000
3 x 70 rm	33.90	203	206	203	206	0.268	2,948.27	1000
3 x 95 rm	39.00	250	247	250	247	0.193	3,984.13	1000
3 x 120 rm	42.60	289	281	289	281	0.153	4,895.78	1000
3 x 150 rm	46.70	330	315	330	315	0.124	5,972.13	500
3 x 185 rm	51.90	381	356	381	356	0.099	7,412.44	500
3 x 240 rm	58.50	451	412	451	412	0.075	9,578.89	500
3 x 300 rm	64.70	517	464	517	464	0.060	11,868.56	500
3 x 400 rm	72.70	594	524	594	524	0.047	15,164.95	500
3 x 10 + 6 rm	19.30	68	77	68	77	1.830	734.35	1000
3 x 16 + 10 rm	21.50	90	99	90	99	1.150	1,004.75	1000
3 x 25 + 16 rm	24.80	121	128	121	128	0.727	1,438.69	1000
3 x 35 + 16 rm	27.00	149	154	149	154	0.524	1,792.07	1000
3 x 50 + 25 rm	31.40	173	173	173	173	0.387	2,464.55	1000
3 x 70 + 35 rm	35.20	215	212	215	212	0.268	3,300.60	1000
3 x 95 + 50 rm	40.60	266	255	266	255	0.193	4,473.04	1000
3 x 120 + 70 rm	44.70	308	289	308	289	0.153	5,602.53	500
3 x 150 + 70 rm	48.30	357	327	357	327	0.124	6,629.44	500
3 x 185 + 95 rm	54.50	405	366	405	366	0.099	8,418.42	500
3 x 240 + 120 rm	60.60	482	425	482	425	0.075	10,710.27	500
3 x 300 + 150 rm	67.00	552	479	552	479	0.060	13,260.02	500
3 x 400 + 185 rm	74.90	643	545	643	545	0.047	16,830.81	500
4 x 1.5 re	12.90	22	27	22	27	12.100	256.83	1000
4 x 2.5 re	13.90	29	35	29	35	7.410	318.92	1000
4 x 4 re	15.80	39	46	39	46	4.610	434.09	1000
4 x 6 re	17.00	50	57	50	57	3.080	540.87	1000
4 x 1.5 rm	13.40	22	27	22	27	12.100	273.83	1000
4 x 2.5 rm	14.40	29	35	29	35	7.410	337.21	1000
4 x 4 rm	16.80	39	46	39	46	4.610	476.17	1000
4 x 6 rm	18.20	50	57	50	57	3.080	595.13	1000
4 x 10 rm	19.70	68	77	68	77	1.830	783.41	1000
4 x 16 rm	22.10	90	99	90	99	1.150	1,080.65	1000
4 x 25 rm	25.70	121	128	121	128	0.727	1,562.81	1000
4 x 35 rm	28.60	149	154	149	154	0.524	2,042.78	1000
4 x 50 rm	33.30	173	173	173	173	0.387	2,784.86	1000
4 x 70 rm	37.30	215	212	215	212	0.268	3,735.86	1000
4 x 95 rm	43.50	266	255	266	255	0.193	5,126.85	1000
4 x 120 rm	47.10	308	289	308	289	0.153	6,249.37	1000
4 x 150 rm	51.80	357	327	357	327	0.124	7,647.73	500
4 x 185 rm	57.90	405	366	405	366	0.099	9,549.82	500
4 x 240 rm	64.90	482	425	482	425	0.075	12,279.80	500
4 x 300 rm	72.20	552	479	552	479	0.060	15,310.73	500
4 x 400 rm	80.50	643	545	643	545	0.047	19,424.85	500
4 x 10 + 6 rm	21.00	68	77	68	77	1.830	863.19	1000
4 x 16 + 10 rm	23.50	90	99	90	99	1.150	1,179.86	1000
4 x 25 + 16 rm	27.40	121	128	121	128	0.727	1,789.97	1000
4 x 35 + 16 rm	30.00	149	154	149	154	0.524	2,258.01	1000
4 x 50 + 25 rm	34.90	173	173	173	173	0.387	3,100.82	1000
4 x 70 + 35 rm	39.30	215	212	215	212	0.268	4,176.07	1000
4 x 95 + 50 rm	45.80	266	255	266	255	0.193	5,724.40	1000
4 x 120 + 70 rm	49.80	308	289	308	289	0.153	7,064.90	500
4 x 150 + 70 rm	54.50	357	327	357	327	0.124	8,499.59	500
4 x 185 + 95 rm	60.90	405	366	405	366	0.099	10,670.74	500
4x 240 + 120 rm	67.90	482	425	482	425	0.075	13,625.22	500
4x 300 + 150 rm	75.70	552	479	552	479	0.060	17,005.48	500
4x 400 + 185 rm	84.20	643	545	643	545	0.047	21,495.39	500
5 x 1.5 re	13.70	23	27	23	27	12.100	294.81	1000
5 x 2.5 re	14.80	30	36	30	36	7.410	369.54	1000
5 x 4 re	17.00	41	47	41	47	4.610	512.97	1000
5 x 6 re	18.30	52	59	52	59	3.080	641.95	1000
5 x 1.5 rm	14.30	23	27	23	27	12.100	316.64	1000
5 x 2.5 rm	15.40	30	36	30	36	7.410	393.08	1000
5 x 4 rm	18.10	41	47	41	47	4.610	562.71	1000
5 x 6 rm	19.70	52	59	52	59	3.080	710.55	1000
5 x 10 rm	21.30	71	78	71	78	1.830	938.37	1000
5 x 16 rm	24.00	94	101	94	101	1.150	1,305.94	1000
5 x 25 rm	28.30	126	131	126	131	0.727	1,920.87	1000
5 x 35 rm	31.80	155	157	155	157	0.524	2,540.91	1000
5 x 50 rm	36.50	189	185	189	185	0.387	3,408.50	1000
5 x 70 rm	41.10	215	212	215	212	0.268	4,603.93	1000
5 x 95 rm	47.80	266	255	266	255	0.193	6,300.57	1000
5 x 120 rm	52.00	308	289	308	289	0.153	7,716.67	500
5 x 150 rm	57.60	357	327	357	327	0.124	9,513.58	500
5 x 185 rm	64.00	405	366	405	366	0.099	11,809.18	500
5 x 240 rm	72.10	482	425	482	425	0.075	15,264.59	500
5 x 300 rm	80.00	552	479	552	479	0.060	18,977.19	500
5 x 400 rm	89.20	643	545	643	545	0.047	24,083.55	500
7 x 1.5 re	14.60	14	10	14	10	12.100	346.93	1000
7 x 2.5 re	15.80	19	16	19	16	7.410	441.28	1000
7 x 1.5 rm	15.20	14	10	14	10	12.100	369.64	1000
7 x 2.5 rm	16.40	19	16	19	16	7.410	465.80	1000
10 x 1.5 re	17.60	12	9	12	9	12.100	507.92	1000
10 x 2.5 re	19.20	16	13	16	13	7.410	652.87	1000
10 x 1.5 rm	18.40	12	9	12	9	12.100	457.80	1000
10 x 2.5 rm	20.00	16	13	16	13	7.410	587.13	1000
12 x 1.5 re	18.10	12	9	12	9	12.100	592.78	1000
12 x 2.5 re	19.80	16	13	16	13	7.410	756.04	1000
12 x 1.5 rm	19.00	12	9	12	9	12.100	592.78	1000
12 x 2.5 rm	20.60	16	13	16	13	7.410	756.04	1000
14 x 1.5 re	18.90	10	8	10	8	12.100	607.95	1000
14 x 2.5 re	20.60	14	12	14	12	7.410	789.41	1000
14 x 1.5 rm	19.80	10	8	10	8	12.100	652.57	1000
14 x 2.5 rm	21.50	14	12	14	12	7.410	837.90	1000
19 x 1.5 re	20.60	9	7	9	7	12.100	744.38	1000
19 x 2.5 re	22.60	12	11	12	11	7.410	984.26	1000
19 x 1.5 rm	21.60	9	7	9	7	12.100	797.89	1000
19 x 2.5 rm	23.60	12	11	12	11	7.410	1,042.79	1000
21 x 1.5 re	21.60	9	7	9	7	12.100	820.91	1000
21 x 2.5 re	23.80	12	11	12	11	7.410	1,092.51	1000
21 x 1.5 rm	22.70	9	7	9	7	12.100	883.13	1000
21 x 2.5 rm	24.80	12	11	12	11	7.410	1,153.77	1000
24 x 1.5 re	23.60	8	6	8	6	12.100	974.64	1000
24 x 2.5 re	26.00	11	10	11	10	7.410	1,292.44	1000
24 x 1.5 rm	24.80	8	6	8	6	12.100	1,049.37	1000
24 x 2.5 rm	27.40	11	10	11	10	7.410	1,387.80	1000
30 x 1.5 re	24.90	8	6	8	6	12.100	1,113.94	1000
30 x 2.5 re	27.60	11	10	11	10	7.410	1,498.93	1000
30 x 1.5 rm	26.20	8	6	8	6	12.100	1,198.65	1000
30 x 2.5 rm	28.90	11	10	11	10	7.410	1,592.46	1000
40 x 1.5 re	27.80	7	5	7	5	12.100	1,412.49	1000
40 x 2.5 re	31.40	9	8	9	8	7.410	1,961.35	1000
40 x 1.5 rm	29.30	7	5	7	5	12.100	1,521.41	1000
40 x 2.5 rm	33.00	9	8	9	8	7.410	2,090.70	1000
48 x 1.5 re	30.90	7	5	7	5	12.100	1,713.02	1000
48 x 2.5 re	34.90	9	8	9	8	7.410	2,378.52	1000
48 x 1.5 rm	33.20	7	5	7	5	12.100	1,901.40	1000
48 x 2.5 rm	36.70	9	8	9	8	7.410	2,537.80	1000
61 x 1.5 re	33.60	6	4	6	4	12.100	2,090.22	1000
61 x 2.5 re	37.40	8	7	8	7	7.410	2,849.48	1000
61 x 1.5 rm	35.40	6	4	6	4	12.100	2,247.48	1000
61 x 2.5 rm	39.40	8	7	8	7	7.410	3,042.97	1000
